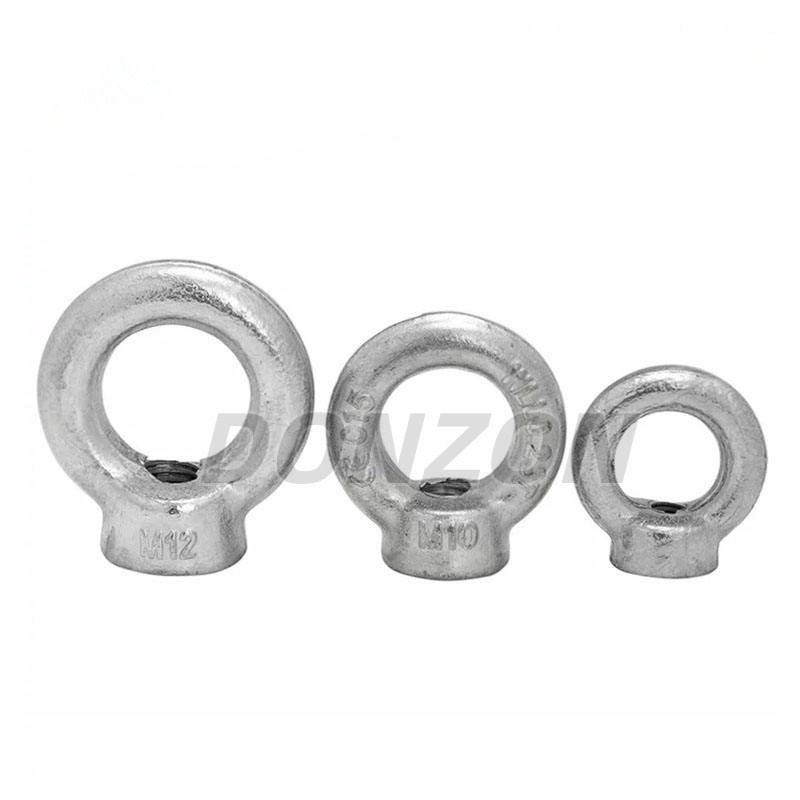

Carbon Steel Oval Eye Nut for Power Line Hardware
This eye nut is made of carbon steel with a solid and durable structure. Equipped with an eye ring and standard internal thread, it can be used for lifting, tensioning and fixing during assembly, suitable for various equipment and line installation scenarios.
The surface is galvanized to resist rust and corrosion when used outdoors and extend service life. It comes in a range of common sizes to meet different installation requirements.
With neat workmanship and precise threads, it allows smooth assembly and disassembly and bears load steadily. Widely applied in power lines, machinery equipment and steel structure connections, it is suitable for long-term outdoor working conditions.
Specification
|
Catalog number
|
Fig.
|
Bolt Size (in)
|
A
|
B
|
C
|
D
|
E
|
F
|
Weight /100 (lbs)
|
|
EN-4
|
1
|
1/2
|
1 3/8
|
9/16
|
1 1/2
|
1 3/4
|
2 5/8
|
3
|
100
|
|
LR1092
|
1
|
5/8
|
1 3/8
|
9/16
|
1 1/2
|
1 3/4
|
2 5/8
|
3
|
72
|
|
LR1093
|
1
|
3/4
|
1 3/8
|
9/16
|
1 1/2
|
1 3/4
|
2 5/8
|
3
|
53
|
|
ENL-5
|
2
|
5/8
|
1 3/8
|
5/8
|
1 1/2
|
2 1/2
|
2 5/8
|
4
|
100
|
|
ENL-6
|
2
|
3/4
|
1 3/8
|
5/8
|
1 1/2
|
2 1/2
|
2 5/8
|
4
|
100
|
|
LR6510
|
3
|
5/8
|
1 1/2
|
1 1/2
|
7/8
|
1 3/8
|
1 7/8
|
3
|
100
|
|
LR6511
|
3
|
3/4
|
1 1/2
|
1 1/2
|
7/8
|
1 3/8
|
1 7/8
|
3
|
91
|
|
LR16512
|
3
|
1
|
2
|
2
|
7/8
|
1 1/2
|
2
|
4 1/2
|
200
|
