Multi Voltage Polymeric Lightning Arrester Line Hardware

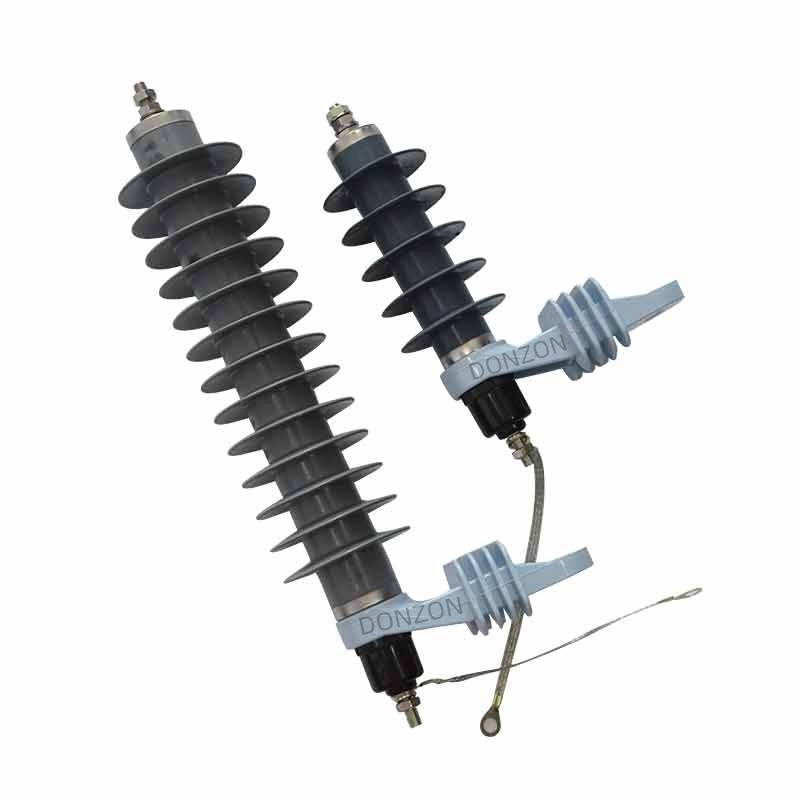

This polymeric zinc oxide surge arrester is key overhead line hardware, customizable for 10kV/24kV/33kV and other voltages. Made of silicone rubber housing and gapless ZnO core, it is anti-pollution, salt-fog resistant and explosion-proof. Equipped with mounting bracket and disconnector, easy pole installation, maintenance free. Comply with IEC standard, ISO9001 & CCC certified, factory direct bulk supply.
|
Type
|
Rated
voltage kV (rms) |
Minimum continuouis operation voltage kV (rms)
|
Steep
current impulse kv (crest) |
Switching
current impulse kV (crest) |
Lighting current impulse kV
(crest) |
Square wave current impulse withstand A (crest)
|
High
current impulse kA (crest) |
|
YH5W-3
|
3
|
2.55
|
9.5
|
7.7
|
9
|
100
|
65
|
|
YHSW-6
|
6
|
5.1
|
19.0
|
15.7
|
18
|
100
|
65
|
|
YH5W-9
|
9
|
7.65
|
28.5
|
23.1
|
27
|
100
|
65
|
|
YHSW-10
|
10
|
8.3
|
36.0
|
27.0
|
30
|
100
|
65
|
|
YH5W-11
|
11
|
9.5
|
38.5
|
30.0
|
33
|
100
|
65
|
|
YH5W-12
|
12
|
10.2
|
38.0
|
30.8
|
36
|
100
|
65
|
|
YH5W-15
|
15
|
12.7
|
47.5
|
38.5
|
45
|
100
|
65
|
|
YH5W-18
|
18
|
15..
|
57.0
|
46.2
|
54
|
100
|
65
|
|
YHSW-21
|
21
|
17.0
|
66.5
|
53.9
|
63
|
100
|
65
|
|
YHSW-24
|
24
|
19.5
|
76.0
|
61.6
|
72
|
100
|
65
|
|
YH5W-27
|
27
|
21.9
|
85.5
|
69.3
|
9
|
100
|
65
|
|
YH5W-30
|
30
|
24.4
|
95.0
|
76.5
|
90
|
100
|
65
|
|
YH5W-33
|
33
|
26.8
|
104.0
|
84.7
|
99
|
100
|
65
|
|
YH5W-36
|
36
|
29.0
|
114.0
|
92.7
|
108
|
100
|
65
|
|
YH5W-42
|
42
|
34.1
|
132.3
|
100.1
|
126
|
100
|
65
|
|
YH10W-3
|
3
|
2.55
|
9.5
|
7.7
|
9
|
250
|
100
|
|
YH10W-6
|
6
|
5.1
|
19.0
|
15.4
|
18
|
250
|
100
|
|
YH10W-9
|
9
|
7.65
|
28.5
|
23.1
|
27
|
250
|
100
|
|
YH10W-10
|
10
|
8.3
|
36.0
|
27.0
|
30
|
250
|
100
|
|
YH10W-11
|
11
|
9.5
|
38.5
|
30.0
|
33
|
250
|
100
|
|
YH10W-12
|
12
|
10.2
|
38.0
|
30.8
|
36
|
250
|
100
|
|
YH10W-15
|
15
|
12.7
|
47.5
|
38.5
|
45
|
250
|
100
|
|
YH10W-18
|
18
|
15.3
|
57.0
|
46.2
|
54
|
250
|
100
|
|
YH10W-21
|
21
|
17.0
|
66.5
|
53.9
|
63
|
250
|
100
|
|
YH10W-24
|
24
|
19.5
|
76.0
|
61.6
|
72
|
250
|
100
|
|
YH10W-27
|
27
|
21.9
|
85.5
|
69.3
|
81
|
250
|
100
|
|
YH10W-30
|
30
|
24.4
|
95.0
|
76.5
|
90
|
250
|
100
|
|
YH10W-33
|
33
|
26.8
|
104.0
|
84.7
|
99
|
250
|
100
|
|
YH10W-36
|
36
|
29.0
|
114.0
|
92.7
|
108
|
250
|
100
|
|
YH10W-42
|
42
|
34.1
|
133.0
|
100.0
|
126
|
250
|
100
|
|
YH10W-48
|
48
|
39.0
|
152.0
|
126.0
|
150
|
250
|
100
|
|
YH10W-54
|
54
|
43.0
|
171.0
|
139.0
|
162
|
400
|
100
|
|
YH10W-60
|
60
|
48.0
|
208.0
|
160.0
|
180
|
400
|
100
|
|
YH10W-66
|
66
|
53.4
|
230.0
|
172.0
|
198
|
400
|
100
|
