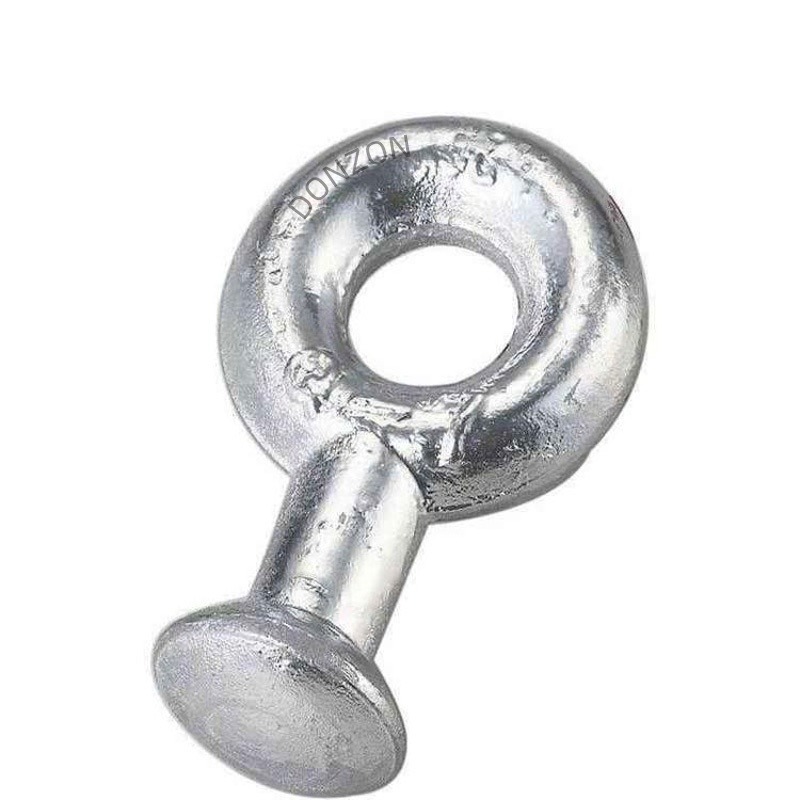

Hot Dipped Galvanized Ball Eye Link Fitting for Transmission Line
This forged ball eye fitting is manufactured from Q235 carbon steel and processed with hot dipped galvanization for excellent anti-corrosion performance, suitable for long-term outdoor overhead power transmission line use.(ILAC-MRA Test Report Available)
It adopts integrated hot forging molding, featuring high tensile strength, stable mechanical load capacity and reliable connection performance.
Standard dimensions are available, and customized sizes can be supported to match different insulator assemblies.
The product complies with GB national standard, widely applied in overhead power lines, pole line hardware and power distribution projects.
Our factory supplies complete specifications with stable delivery cycle and strict quality inspection before shipment.
|
Type
|
D(mm)
|
φ(mm)
|
B(mm)
|
D1(mm)
|
H(mm)
|
Designated size of coupling (mm)
|
Rated failure load (kN)
|
Fig
|
Weight (kg)
|
|
Q-7
|
17
|
22
|
16
|
33.3
|
50
|
16
|
70
|
1
|
0.3
|
|
QP-7
|
17
|
22
|
16
|
33.3
|
50
|
16
|
70
|
2
|
0.27
|
|
QP-10
|
17
|
22
|
16
|
33.3
|
50
|
16
|
100
|
2
|
0.3
|
|
QP-12
|
17
|
24
|
16
|
33.3
|
60
|
16
|
120
|
2
|
0.344
|
|
QP-12G
|
17
|
24
|
17
|
33.3
|
60
|
16
|
120
|
2
|
0.4
|
|
QP-16
|
21
|
26
|
20
|
41
|
60
|
20
|
160
|
2
|
0.5
|
|
QP-16G
|
21
|
26
|
18
|
41
|
60
|
20
|
160
|
2
|
0.5
|
|
QP-20
|
25
|
30
|
24
|
49
|
80
|
24
|
200
|
2
|
0.877
|
|
QP-21D
|
21
|
29
|
21
|
41
|
70
|
20
|
210
|
2
|
0.85
|
|
QP-30
|
25
|
39
|
28
|
49
|
80
|
24
|
300
|
2
|
1.05
|
