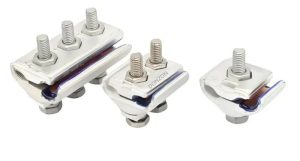

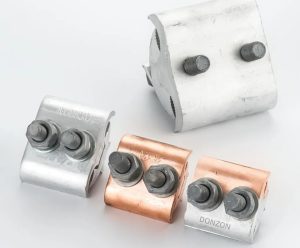

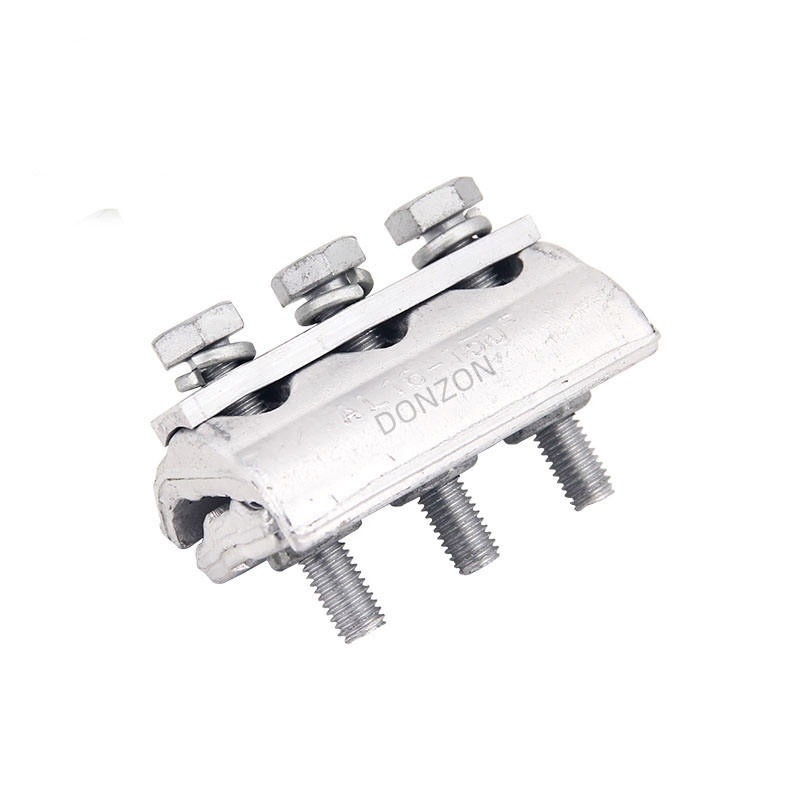

Aluminum Parallel Groove PG Clamp

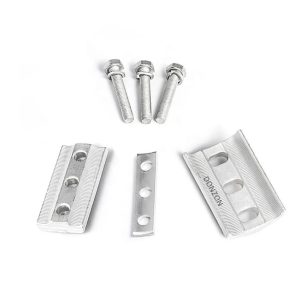

1. Core Functions Designed for parallel connection and T-branching of overhead aluminum conductors and ACSR cables to realize stable current shunting. Tooth-shaped inner grooves provide large contact area, low contact resistance and no overheating during operation. Multi-bolt clamping structure prevents loosening after installation, ensuring reliable long-term outdoor service.
2. Material & Process Advantages Made of 99.5% high-purity aluminum, featuring light weight and excellent corrosion resistance for long-term outdoor power line application. Two forming technologies available: forged for APG series and extruded for ALPG series with guaranteed mechanical strength. Manufactured in compliance with GB and DIN 48204 standards, widely compatible with global power projects.
3. Application Scenarios Overhead distribution lines, outgoing cable splicing in substations, urban & rural power grid upgrading projects.
4. Extra Benefits Full range of bolt sizes fits conductor cross-section from 16 mm² to 300 mm²; packed in wooden cases for bulk export; free samples are available for verification.
|
Type
|
Conductor Cross-section(mm²)
|
Bolt
|
|
APG10840
|
AL16-70
|
1*M8*40
|
|
APG10845
|
AL25-150
|
1*M8*45
|
|
APG20635
|
AL6-35
|
2*M6*35
|
|
APG20845
|
AL16-70
|
2*M8*45
|
|
APG20850
|
AL25-150
|
2*M8*50
|
|
APG21060
|
AL25-240
|
2*M10*60
|
|
APG21070
|
AL35-300
|
2*M10*70
|
|
APG30845
|
AL16-70
|
3*M8*45
|
|
APG30850
|
AL25-150
|
3*M8*50
|
|
APG31060
|
AL25-240
|
3*M10*60
|
|
APG31070
|
AL35-300
|
3*M10*70
|
|
ALPG21065
|
AL16-120
|
2*M10*65
|
|
ALPG21075
|
AL50-240
|
2*M10*75
|
