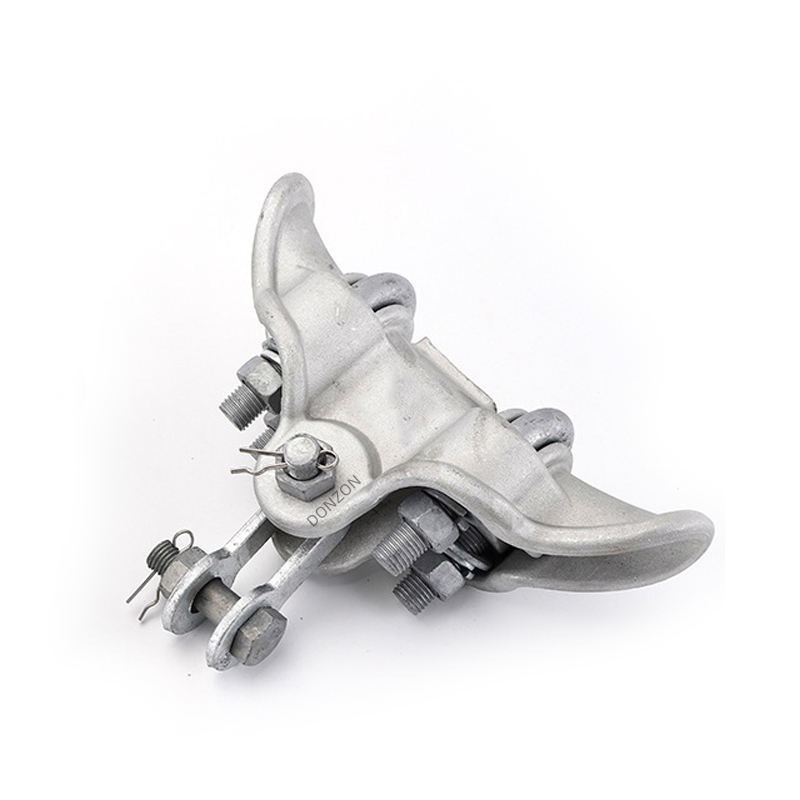

Overhead Line Suspension Clamp
This suspension clamp is used to suspend and fix overhead cables on transmission towers, reliably support cable load for outdoor power erection projects.
It is a standard matching fitting for overhead transmission lines, plays an indispensable connecting and bearing role in line layout.(ILAC-MRA Test Report Available)
Key Advantages
Firm clamping structure, anti-loosening for long-term safe operation;
Compatible with various cable sizes, wide applicability;
Simple on-site assembly, greatly improving construction efficiency.
Application
Suitable for distribution line construction, power grid upgrading, overhead communication cable erection and other engineering projects.
Can cope with conventional overhead line laying demands in different regions and terrain environments.
|
Type
|
Applicable Wire Diameter (including wrapping) (mm)
|
Main Dimensions (mm)
|
Nominal Breaking Load (kN)
|
Reference Weight
|
|||||
|
L
|
C
|
R
|
H
|
M
|
|||||
|
XGU-1
|
5.0~7.0
|
175
|
18
|
4
|
82
|
16
|
40
|
1.4
|
|
|
XGU-2
|
7.1~13.0
|
175
|
18
|
7
|
82
|
16
|
40
|
1.8
|
|
|
XGU-3
|
13.1~21.0
|
198
|
18
|
11
|
102
|
16
|
40
|
2
|
|
|
XGU-4
|
21.1~26.0
|
215
|
18
|
13.5
|
110
|
16
|
40
|
3
|
|
