ADSS Cable Pole Bracket Line Hardware

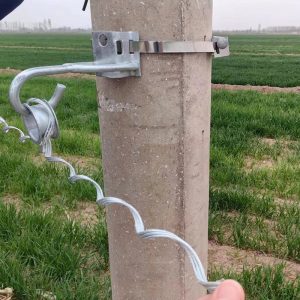

Our galvanized steel pole bracket is professional overhead line hardware specially designed for fixing ADSS aerial fiber cables on concrete poles. The whole fitting adopts hot-dip galvanizing treatment to achieve excellent anti-rust and anti-corrosion performance, which can adapt to long-term outdoor service in coastal, humid and harsh mountain environments.
It can be quickly locked on utility poles with stainless steel pole bands without damaging the pole surface. Matching spiral plastic insulator, it effectively bears cable tension and avoids cable abrasion, greatly extending the service life of optical lines. Multiple sizes are available to fit different cable diameters and pole specifications.

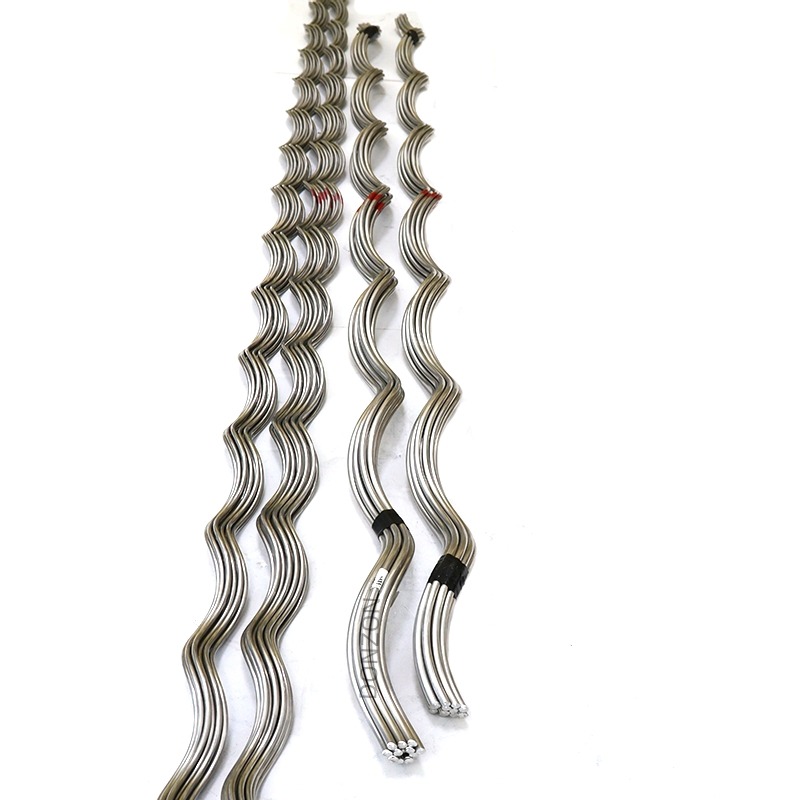

Manufactured in strict accordance with power fitting industry standards, we provide stable quality, short lead time and flexible OEM & ODM customization to meet various overhead communication line construction demands. Complete supporting line hardware including preformed armor rods, suspension clamps and pole bands are supplied for one-stop purchase.(ILAC-MRA Test Report Available)
|
Type
|
d(mm)
|
Length
|
Weight (kg)
|
|
TFYH-70/10
|
3.6
|
1300
|
0.33
|
|
TFYH-95/15
|
3.6
|
1400
|
0.53
|
|
TFYH-95/20
|
3.6
|
1400
|
0.54
|
|
TFYH-95/55
|
3.6
|
1500
|
0.62
|
|
TFYH-120/7
|
3.6
|
1400
|
0.55
|
|
TFYH-120/20
|
3.6
|
1400
|
0.57
|
|
TFYH-120/25
|
3.6
|
1400
|
0.58
|
|
TFYH-120/70
|
4.6
|
1800
|
0.75
|
|
TFYH-150/8
|
3.6
|
1500
|
0.62
|
|
TFYH-150/20
|
3.6
|
1500
|
0.65
|
|
TFYH-150/25
|
3.6
|
1500
|
0.64
|
|
TFYH-150/35
|
3.6
|
1500
|
0.66
|
|
TFYH-185/10
|
4.6
|
1800
|
1.24
|
|
TFYH-185/25
|
4.6
|
1800
|
1.25
|
|
TFYH-185/30
|
4.6
|
1800
|
1.26
|
|
TFYH-185/45
|
4.6
|
1800
|
1.26
|
|
TFYH-210/10
|
4.5
|
1800
|
1.27
|
|
TFYH-210/25
|
4.6
|
1800
|
1.28
|
|
TFYH-210/35
|
4.6
|
1800
|
1.28
|
|
TFYH-210/50
|
4.6
|
1800
|
1.30
|
|
TFYH-240/30
|
4.6
|
1900
|
1.44
|
|
TFYH-240/40
|
4.6
|
1900
|
1.44
|
|
TFYH-240/55
|
4.6
|
1900
|
1.50
|
|
TFYH-300/15
|
6.3
|
2000
|
2.30
|
|
TFYH-300/20
|
6.3
|
2000
|
2.30
|
|
TFYH-300/25
|
6.3
|
2000
|
2.33
|
|
TFYH-300/40
|
6.3
|
2000
|
2.34
|
|
TFYH-300/50
|
6.3
|
2000
|
2.34
|
|
TFYH-300/70
|
6.3
|
2000
|
2.54
|
|
TFYH-400/20
|
6.3
|
2200
|
2.80
|
|
TFYH-400/25
|
6.3
|
2200
|
2.80
|
|
TFYH-400/35
|
6.3
|
2200
|
2.80
|
|
TFYH-400/50
|
6.3
|
2200
|
2.80
|
|
TFYH-400/65
|
6.3
|
2200
|
2.83
|
|
TFYH-400/95
|
6.3
|
2200
|
2.85
|
|
TFYH-500/35
|
6.3
|
2500
|
3.48
|
|
TFYH-500/45
|
6.3
|
2500
|
3.48
|
|
TFYH-500/65
|
6.3
|
2500
|
3.50
|
|
TFYH-630/45
|
7.8
|
2500
|
5.32
|
|
TFYH-630/55
|
7.8
|
2500
|
5.40
|
|
TFYH-630/80
|
7.8
|
2500
|
5.40
|
|
TFYH-720/50
|
7.8
|
3000
|
6.20
|
|
TFYH-800/55
|
7.8
|
2500
|
6.02
|
|
TFYH-800/70
|
7.8
|
2500
|
6.10
|
|
TFYH-800/100
|
7.8
|
2500
|
6.20
|
