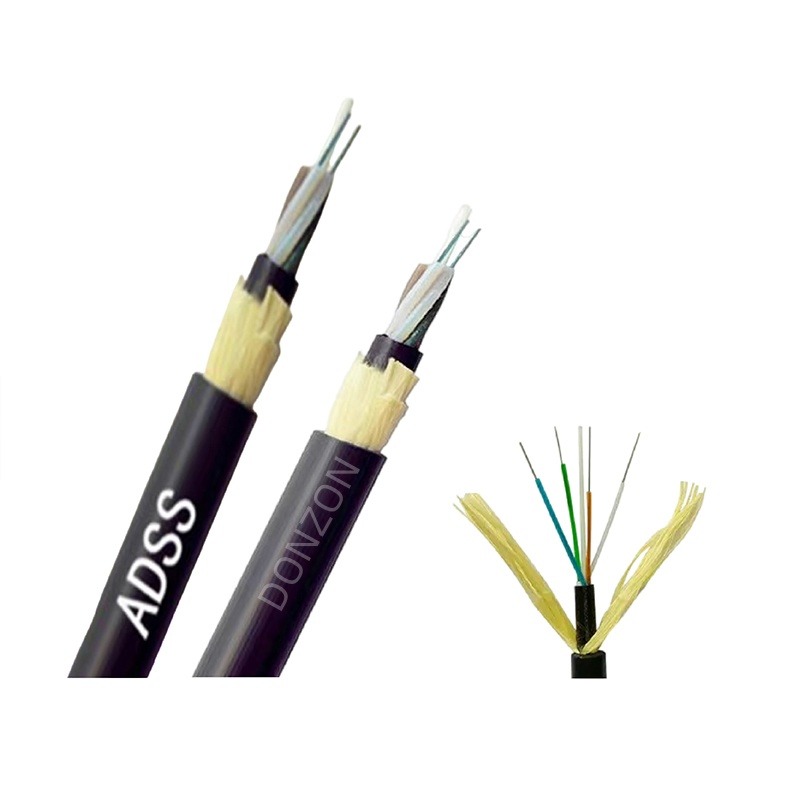

Low Attenuation Single Mode Fiber Core For ADSS Aerial Optical Cable
Our ADSS self-supporting aerial optical cable is equipped with premium single-mode fiber featuring low attenuation and low dispersion, with attenuation less than 0.34dB/km at 1310nm and below 0.2dB/km at 1550nm. It greatly cuts signal loss and bit error rate in long-distance overhead transmission, delivering steady and reliable data signal transmission, perfectly matching power grid communication and large-span aerial monitoring projects.
|
Model
|
ADSS -SPAN 100m
|
||||||||
|
Fiber Type
|
ITU-T G652D
|
||||||||
|
Fiber Counts
|
2-30
|
32-36
|
38-60
|
62-72
|
74-96
|
98-120
|
122-144
|
146-216
|
218-288
|
|
Max. fibers per tube
|
6
|
6
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Units (Tubes or Fillers)
|
6
|
6
|
6
|
6
|
8
|
10
|
12
|
18
|
24
|
|
Cable Diameter (mm)
|
9.7
|
9.7
|
9.7
|
9.7
|
11.2
|
12.3
|
13.5
|
13.7
|
16.3
|
|
Cable Weight ( Kg/km)
|
74
|
75
|
75
|
75
|
100
|
120
|
143
|
142
|
195
|
|
Tensile (N)
|
MAT: 1800
|
||||||||
|
Crush ( N/100mm)
|
Long/Short Term: 300/1000
|
||||||||
|
Min. Bending Radius (mm)
|
Static/Dynamic: 10D/20D
|
||||||||
|
Temperature (℃)
|
Storage /Operation: -40℃~70℃
|
||||||||
|
Model
|
ADSS -SPAN 200m
|
||||||||
|
Fiber Type
|
ITU-T G652D
|
||||||||
|
Fiber Counts
|
2-30
|
32-36
|
38-60
|
62-72
|
74-96
|
98-120
|
122-144
|
146-216
|
218-288
|
|
Max. fibers per tube
|
6
|
6
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Units (Tubes or Fillers)
|
6
|
6
|
6
|
6
|
8
|
10
|
12
|
18
|
24
|
|
Cable Diameter (mm)
|
12.0
|
12.0
|
12.0
|
12.0
|
13.4
|
14.5
|
15.7
|
15.9
|
18.5
|
|
Cable Weight(Kg/km)
|
110
|
110
|
110
|
110
|
140
|
165
|
192
|
191
|
252
|
|
Tensile(N)
|
MAT: 3200
|
||||||||
|
Crush(N/100mm)
|
Long/Short Term: 300/2200
|
||||||||
|
Min. Bending Radius (mm)
|
Static/Dynamic: 10D/20D
|
||||||||
|
Temperature (℃)
|
Storage /Operation: -40℃~70℃
|
||||||||
|
Model
|
ADSS -SPAN 300m
|
||||||||
|
Fiber Type
|
ITU-T G652D
|
||||||||
|
Fiber Counts
|
2-30
|
32-36
|
38-60
|
62-72
|
74-96
|
98-120
|
122-144
|
146-216
|
218-288
|
|
Max. fibers per tube
|
6
|
6
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Units (Tubes or Fillers)
|
6
|
6
|
6
|
6
|
8
|
10
|
12
|
18
|
24
|
|
Cable Diameter (mm)
|
12.1
|
12.1
|
12.1
|
12.1
|
13.5
|
14.6
|
15.8
|
16.0
|
18.6
|
|
Cable Weight (Kg/km)
|
112
|
112
|
112
|
112
|
142
|
166
|
194
|
193
|
255
|
|
Tensile (N)
|
MAT: 4500
|
||||||||
|
Crush (N/100mm)
|
Long/Short Term: 300/2200
|
||||||||
|
Min. Bending Radius (mm)
|
Static/Dynamic: 10D/20D
|
||||||||
|
Temperature (℃)
|
Storage /Operation: -40℃~70℃
|
||||||||
