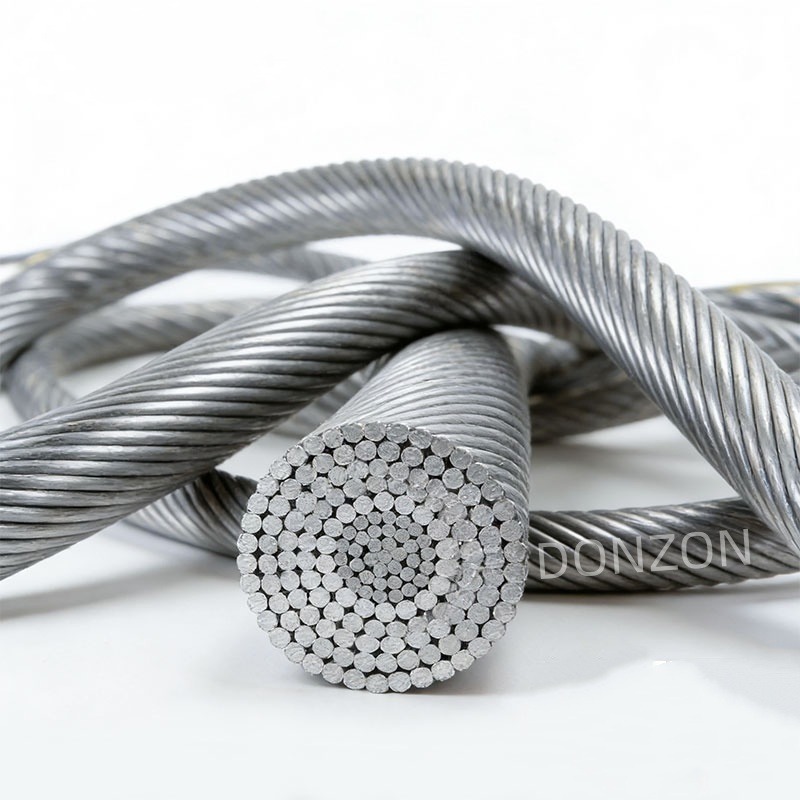

High Strength ACSR Steel Cored Stranded Aluminum Wire for Overhead Power Transmission Lines
ACSR (Aluminum Conductor Steel Reinforced) is a type of overhead bare conductor widely used in power transmission and distribution systems. It is constructed with high-purity aluminum strands for electrical conductivity and a central steel core for mechanical strength, making it the ideal solution for long-span and high-voltage overhead lines.(ILAC-MRA Test Report Available)
|
Parameters
|
Model
|
LGJ-10/2
|
LGJ-16/3
|
LGJ-25/4
|
LGJ-35/6
|
LGJ-50/8
|
LGJ-50/30
|
LGJ-70/10
|
LGJ-70/40
|
|
Structure
|
Number/Diameter n/mm – Aluminum
|
6/1.50
|
6/1.85
|
6/2.32
|
6/2.72
|
6/3.20
|
12/2.32
|
7/3.80
|
12/2.72
|
|
Number/Diameter n/mm – Steel
|
1/1.50
|
1/1.85
|
1/2.32
|
1/2.72
|
1/3.20
|
7/2.32
|
1/3.80
|
7/2.72
|
|
|
Calculated Cross-Sectional Area (mm²)
|
Aluminum
|
10.6
|
16.13
|
25.36
|
34.86
|
48.25
|
50.73
|
68.05
|
69.73
|
|
Steel
|
1.77
|
2.69
|
4.23
|
5.81
|
8.01
|
29.59
|
11.34
|
40.67
|
|
|
Total
|
12.37
|
18.82
|
29.59
|
40.67
|
56.29
|
80.32
|
79.39
|
110.4
|
|
|
Outer Diameter of Conductor (mm)
|
Aluminum
|
4.5
|
5.55
|
6.96
|
8.16
|
9.6
|
11.6
|
11.4
|
13.6
|
|
Steel
|
1.5
|
1.85
|
2.32
|
2.72
|
3.2
|
6.96
|
3.8
|
8.16
|
|
|
Calculated Weight (kg/km)
|
Aluminum
|
29.2
|
44.3
|
69.7
|
95.8
|
132.5
|
140.6
|
187
|
193.3
|
|
Steel
|
13.7
|
20.9
|
32.9
|
45.2
|
62.6
|
231.4
|
88.2
|
318
|
|
|
Total
|
42.9
|
65.2
|
102.6
|
141
|
195.1
|
372
|
275.2
|
511.3
|
|
|
DC Resistance at 20℃ (Ω/km)
|
2.706
|
1.779
|
1.131
|
0.828
|
0.5946
|
0.5692
|
0.4217
|
0.4141
|
|
|
Calculated Breaking Force (N)
|
4120
|
6130
|
9290
|
12630
|
16870
|
42620
|
23390
|
58300
|
|
|
Final Modulus of Elasticity (N/mm²)
|
79000
|
79000
|
79000
|
79000
|
79000
|
105000
|
79000
|
105000
|
|
|
Coefficient of Linear Expansion (1/℃)
|
19.1×10-6
|
19.1×10-6
|
19.1×10-6
|
19.1×10-6
|
19.1×10-6
|
18.5×10-6
|
19.1×10-6
|
18.3×10-6
|
|
|
Tensile Strength of Stranded Round Aluminum Wire, Minimum (N/mm²)
|
183
|
176
|
168
|
160
|
157
|
168
|
152
|
160
|
|
|
Tensile Strength of Stranded Galvanized (Zn-Al Alloy Coated) Steel Wire, Minimum (N/mm²)
|
1244
|
1244
|
1244
|
1244
|
1244
|
1244
|
1244
|
1244
|
|
|
Weight of Steel Wire Coating, Minimum (g/m²)
|
183
|
214
|
229
|
229
|
244
|
229
|
259
|
229
|
|
|
Lay Direction (Outermost Layer)
|
right
|
right
|
right
|
right
|
right
|
right
|
right
|
right
|
|
|
Minimum Delivery Length (m)
|
3000
|
3000
|
3000
|
3000
|
2000
|
3000
|
2000
|
2000
|
|
|
Applicable Standard
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
GB1179-83
|
|
|
400/50
|
54/3.07
|
7/3.07
|
26.25
|
1
|
3.4
|
35.1
|
0.0723
|
123400
|
1922
|
|
400/65
|
26/4.42
|
7/3.44
|
26.6
|
1
|
3.4
|
35.4
|
0.0724
|
135200
|
2024
|
|
400/95
|
30/4.16
|
19/2.50
|
27.68
|
1
|
3.4
|
36.5
|
0.07
|
171300
|
2298
|
|
500/35
|
45/3.75
|
7/2.50
|
28.5
|
1
|
3.4
|
37.3
|
0.0581
|
119500
|
2080
|
|
500/45
|
48/3.60
|
7/2.80
|
28.5
|
1
|
3.4
|
37.3
|
0.0591
|
128100
|
2126
|
|
500/65
|
54/3.44
|
7/3.44
|
29.41
|
1
|
3.4
|
38.2
|
0.0576
|
154000
|
2347
|
FAQ
What customization options are available?
We offer full customization, minor customization, as well as customization from samples and designs.
What is the minimum order quantity?
The minimum order quantity is 5000 sets.
How long does delivery take?
Delivery times range from 15 to 30 days, depending on whether it is peak or off-peak season.
What standards does the product meet?
Products are certified by ISO9001, ISO14001, IEC, ASTM, and BS standards.
What is the anti-corrosion protection duration?
The hot-dip galvanized layer exceeds 85 microns, ensuring over 20 years of anti-corrosion protection.
What payment terms are accepted?
We accept LC, T/T, D/P, and PayPal.
Where is the product shipped from?
The nearest port for export is Tianjin port.
