Hot HYA Multi Pair Outdoor Telephone Cable

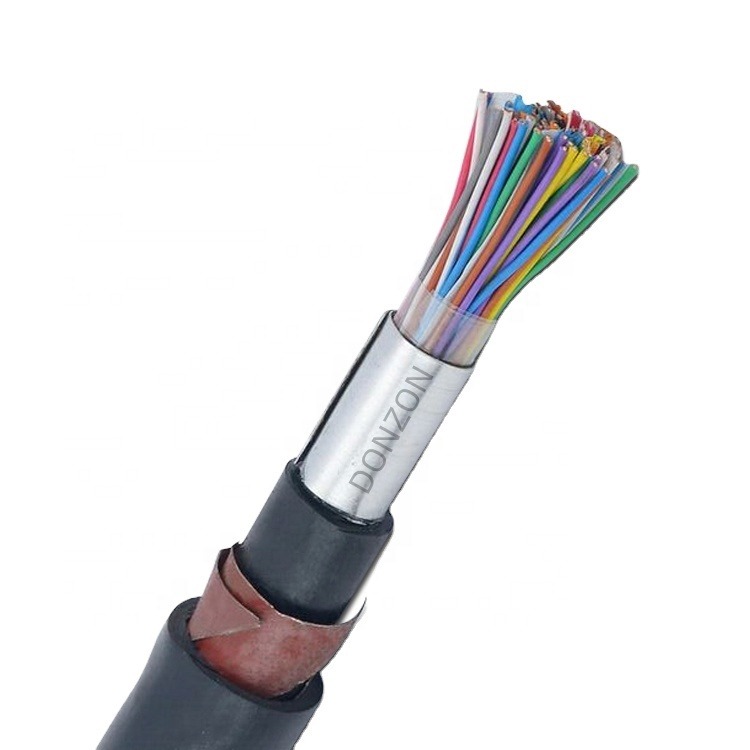

Our HYA multi pair telephone cable adopts solid round bare copper conductor with color-coded PE insulation, paired twisted structure to reduce crosstalk, covered with weather-resistant black PE outer sheath, available in various pairs including 5×2×0.4, 5×2×0.5 and other specifications, featuring anti-aging, low transmission loss and stable signal performance, widely used for outdoor pipeline, aerial local voice communication and telecommunication engineering projects.(ILAC-MRA Test Report Available)
|
Application
|
Performance
|
|||
|
Applied in the network of telephone exchanges and connecting
system,also applies to data transmission applications. |
Operating voltage:150V
Operating temperature range: Movable installation : 5″Cto+ 60°C Fixed installation:- 40Cto+ 60°C |
|||
|
Size AWG
|
Structure(mm)
|
Nominalod(mm)
|
Approx overall dia(mm)
|
|
|
Commom specification for circular line
|
2P
|
1/0.5
|
0.9
|
3
|
|
4P
|
1/0.5
|
0.9
|
3.8
|
|
|
6P
|
1/0.5
|
0.9
|
4
|
|
|
8P
|
1/0.5
|
0.9
|
4.5
|
|
|
12P
|
1/0.5
|
0.9
|
5
|
|
|
For flat telephone line
|
2P
|
7/0.2
|
0.9
|
2.5*3.2
|
|
4P
|
7/0.2
|
0.9
|
2.5*5.0
|
|
|
6P
|
7/0.2
|
0.9
|
2.5*6.8
|
|
